Bar Bending Schedule (BBS) Mastery: The Most Underrated Skill for Civil Engineers on Site

In real construction projects, steel reinforcement is one of the most expensive and structurally critical components of any RCC (Reinforced Cement Concrete) structure. Yet, one of the most ignored and underrated skills among fresh civil engineers is the preparation and understanding of the Bar Bending Schedule (BBS). While structural drawings provide reinforcement detailing, it is the BBS that converts design intent into measurable, executable, and cost-controlled site work. Poor knowledge of BBS leads to steel wastage, incorrect bar cutting, improper reinforcement placement, and significant cost overruns.

For site engineers, project engineers, and quantity surveyors, mastering BBS is not just a technical skill but a powerful operational tool that directly impacts quality, cost efficiency, and structural safety.

What is a Bar Bending Schedule (BBS) in Practical Construction?

A Bar Bending Schedule is a detailed tabular representation of reinforcement bars used in structural elements such as footings, beams, columns, slabs, and staircases. It includes bar diameter, shape, cutting length, number of bars, bending details, and total steel quantity. Unlike theoretical reinforcement calculations, BBS is used on-site for actual steel cutting, bending, and placement according to structural drawings.

Why BBS is Critical in Real Construction Site Operations

Cost Control and Steel Optimization

Steel contributes a major portion of construction cost in RCC structures. Without proper BBS, random cutting of reinforcement bars leads to excessive wastage and financial losses. A well-prepared BBS optimizes bar lengths, reduces scrap generation, and ensures efficient utilization of reinforcement steel.

Accurate Execution as per Structural Drawings

BBS acts as a bridge between structural drawings and site execution. It ensures that reinforcement placement follows exact specifications related to spacing, lap length, hooks, and bends. This minimizes execution errors and enhances structural reliability.

Core Components of a Professional BBS

1. Bar Mark

Each reinforcement bar is assigned a unique identification number that corresponds to structural drawings. This helps in tracking bar placement during execution.

2. Bar Diameter and Shape Code

The schedule includes the diameter (e.g., 8mm, 12mm, 16mm, 20mm) and bending shape as per standard codes like IS 2502. Incorrect shape interpretation can result in improper anchorage and load transfer issues.

3. Cutting Length Calculation

Cutting length is the most technical part of BBS preparation. It includes:

• Clear length

• Bend allowance

• Hook length

• Lap lengthErrors in cutting length directly cause reinforcement shortages or excessive wastage.

Practical BBS Calculation Example (Site Perspective)

For example, in a beam:

• Clear span = 4 meters

• Development length + bends + hooks = additional length

• Total cutting length = Clear span + bend allowances + anchorage

If engineers ignore bend deductions and allowances, the reinforcement will either fall short or create congestion at beam-column joints, affecting structural integrity and compaction quality.

Common BBS Mistakes Observed on Construction Sites

Incorrect Lap Length Calculation

Lap length varies based on bar diameter, grade of concrete, and structural location. Using a standard lap length without calculation leads to weak bonding and structural vulnerability.

Ignoring Bend Allowance and Hook Length

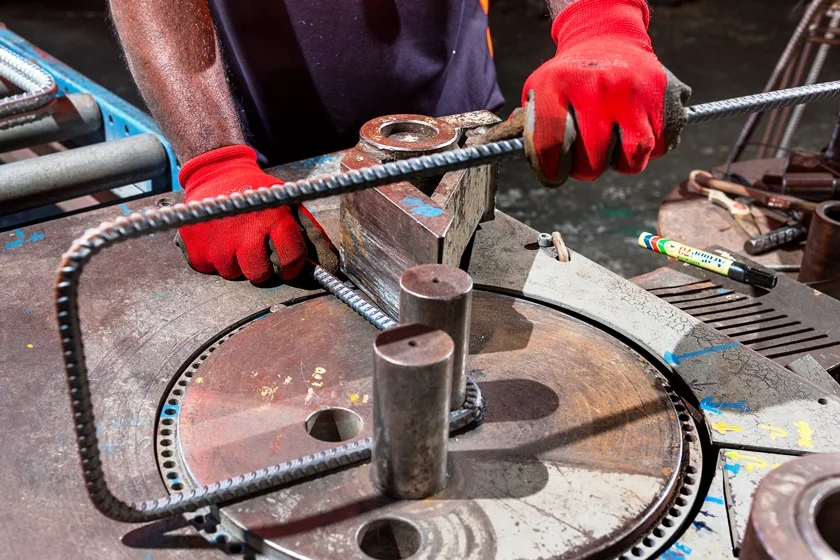

Many fresh engineers calculate cutting length based only on clear dimensions, ignoring bends and hooks. This causes inaccurate bar fabrication and placement errors.

Lack of Coordination Between BBS and Site Execution

Sometimes BBS is prepared in office but not properly communicated to bar benders and site supervisors. This results in incorrect bending, rework, and delays.

Operational Advantages of BBS for Site Engineers

Material Planning and Procurement

BBS helps engineers estimate total steel quantity before execution, enabling accurate procurement and inventory control.

Reduction in Construction Delays

Pre-planned reinforcement cutting and bending based on BBS ensures smooth workflow and avoids last-minute fabrication delays.

Quality Assurance and Structural Safety

Accurate reinforcement placement as per BBS ensures proper load distribution, crack resistance, and long-term durability of structures.

BBS in Different Structural Elements

Footings

Includes bottom mesh, top reinforcement (if required), and column dowel bars. Errors here can lead to foundation instability.

Beams

Consists of main bars, stirrups, crank bars, and anchorage lengths. Misplacement affects flexural strength and shear resistance.

Slabs

Includes distribution bars, main reinforcement, and extra bars near supports. Incorrect spacing leads to deflection and cracking.

Columns

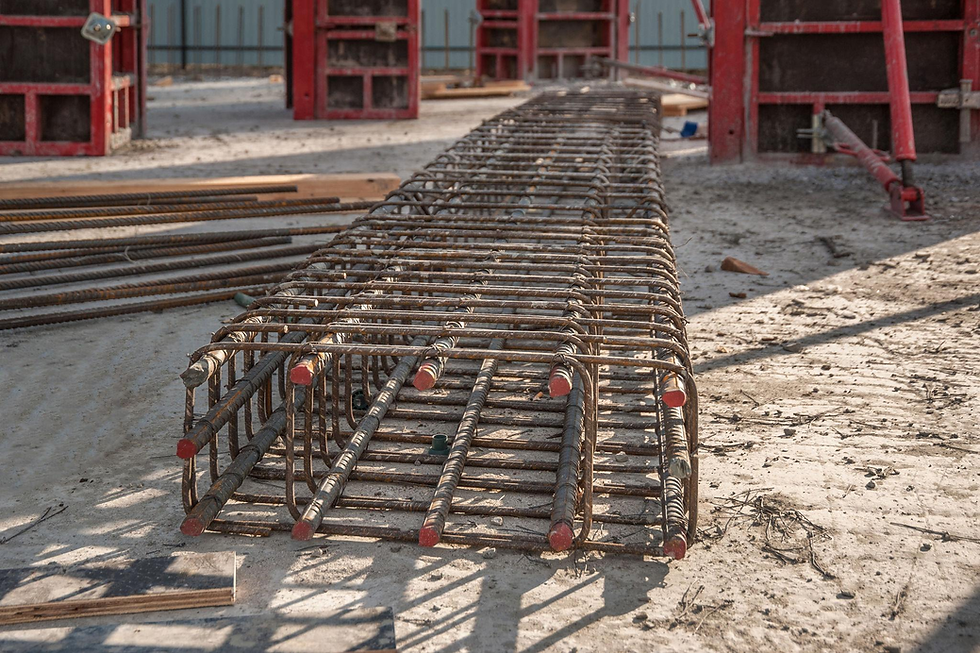

Requires precise vertical bars, ties, and lap positioning. Improper BBS in columns compromises load-bearing capacity.

Role of BBS in Minimizing Steel Wastage on Site

Steel wastage is a major financial loss in construction projects. Without BBS, random cutting and improper stock management lead to 5–10% unnecessary wastage. With optimized BBS, engineers can plan bar cutting sequences, reuse leftover steel, and maintain inventory efficiency. This directly improves project profitability and sustainability.

Integration of BBS with Modern Construction Technology

With the adoption of BIM (Building Information Modeling) and rebar detailing software, BBS preparation has become more accurate and automated. Digital tools allow 3D visualization of reinforcement, clash detection, and precise quantity take-offs. However, even with advanced software, site engineers must verify BBS practically to ensure correct execution.

Field Challenges in Implementing BBS

• Unskilled bar benders misreading schedules

• Drawing revisions affecting reinforcement quantity

• Congestion at beam-column joints

• Lack of supervision during steel placement

These challenges highlight the importance of continuous site inspection and coordination between design and execution teams.

Best Practices for BBS Mastery on Construction Sites

• Always cross-check BBS with structural drawings

• Verify lap lengths as per IS codes and design requirements

• Conduct pre-steel inspection before concreting

• Maintain proper documentation of steel consumption

• Coordinate with bar bending yard and supervisors regularly

Conclusion: BBS as a Core Skill for Technical and Operational Excellence

Bar Bending Schedule mastery is one of the most powerful yet undervalued skills in civil engineering site operations. It directly influences cost control, construction accuracy, material optimization, and structural safety. Engineers who neglect BBS often face reinforcement errors, steel wastage, and execution delays, whereas those who master it gain strong technical authority and operational efficiency on site.

In the modern construction industry, where cost optimization and quality execution are critical, BBS is not just a documentation tool but a strategic engineering skill. A civil engineer who understands and implements BBS effectively demonstrates practical competence, technical precision, and professional reliability, making them an indispensable asset in any construction project.
